Kinedyne

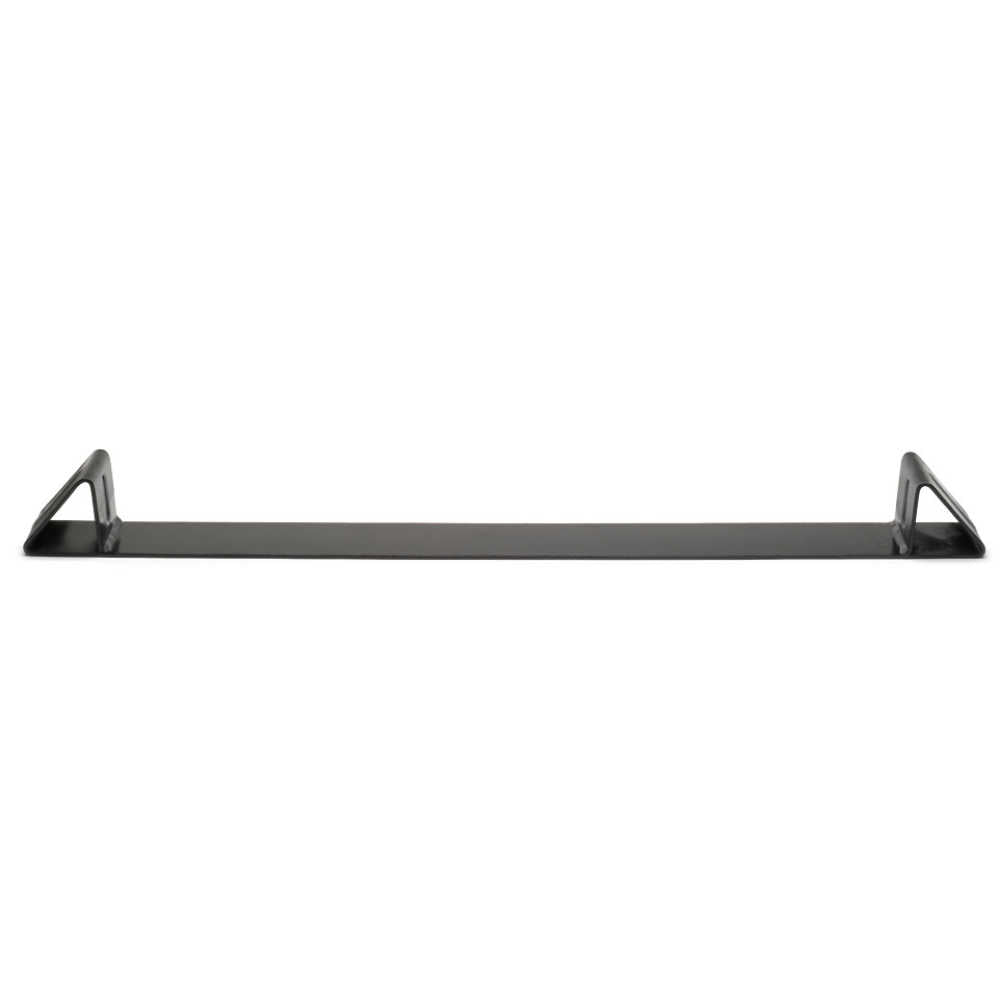

Kinedyne Heavy Duty Coil Rack - 8 Gauge Hot Rolled Steel - 33.25" Long - 80044

  • $18.72
Product Highlights
  • Use with hardwood timbers to secure metal coils
  • 8-gauge hot rolled steel construction
  • Size (in.): 33.25 long x 2.75 wide x 2.85 high
  • Keep steel coil from rocking and rolling during flatbed trucking
  • Lead Time: 1 - 2 business days + transit time
Item # KD80044-01
  • Overview
  • Specs

Product Overview

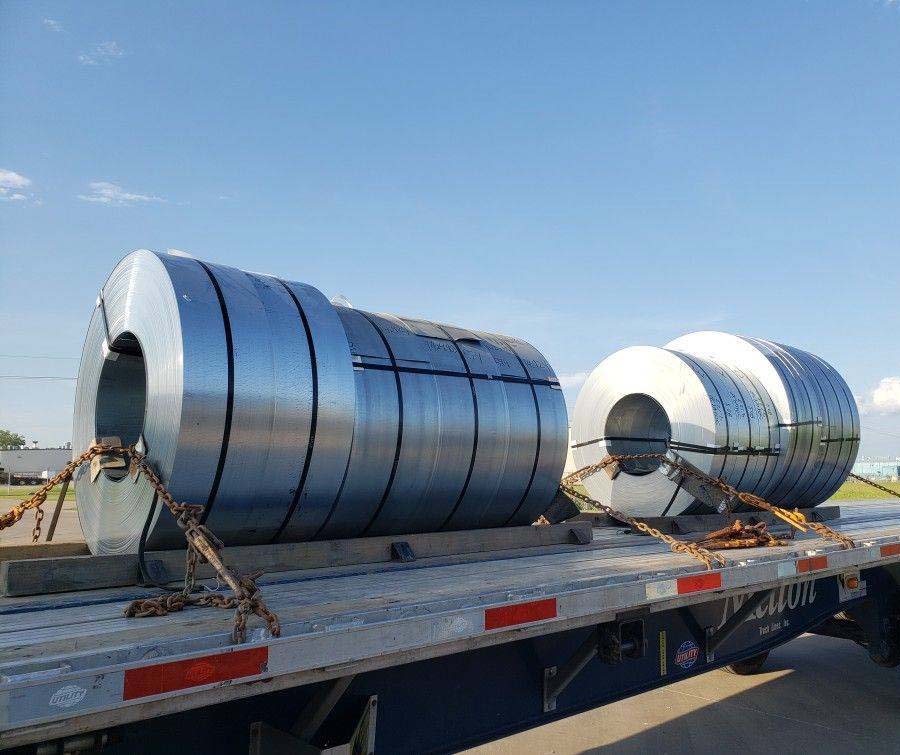

Kinedyne heavy duty coil rack of 8-guage hot rolled steel - 33.25" Long - 80044. Heavy duty coil Racks for flatbed trucking, also known as coil chocks or coil bunks, are used in conjunction with lumber to stabilize metal coils in the load securement process.

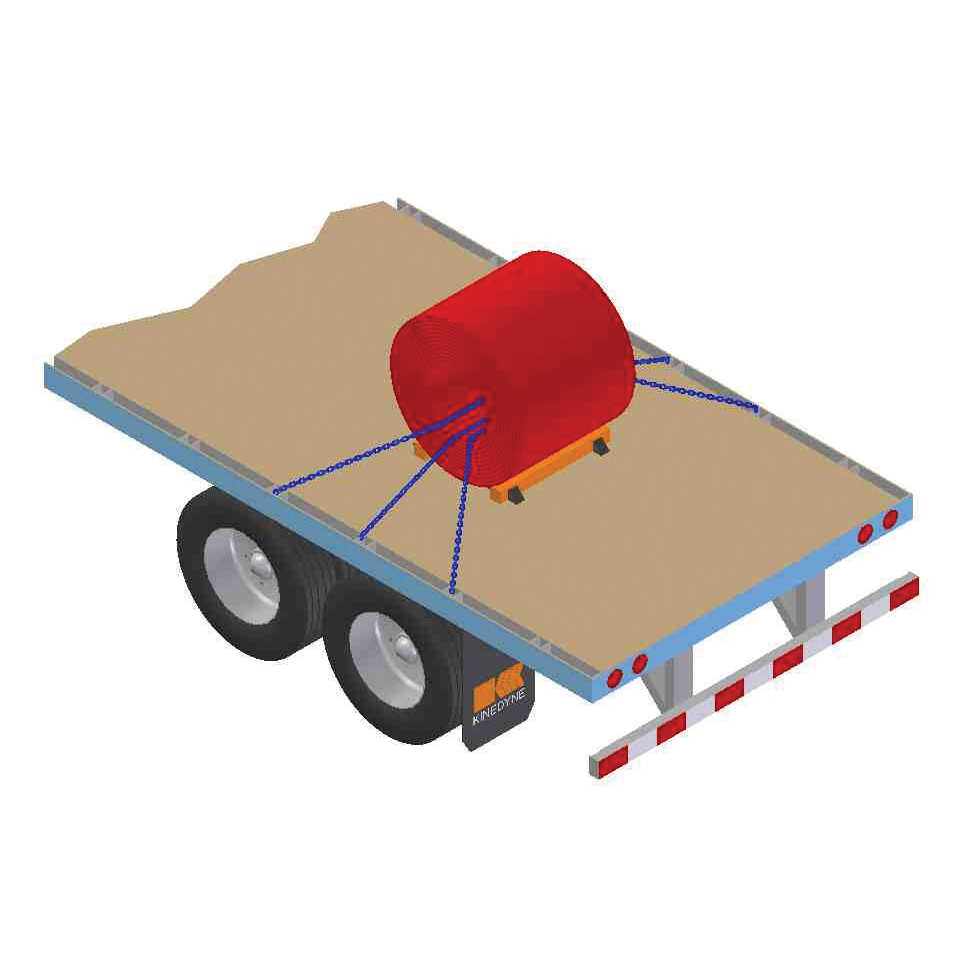

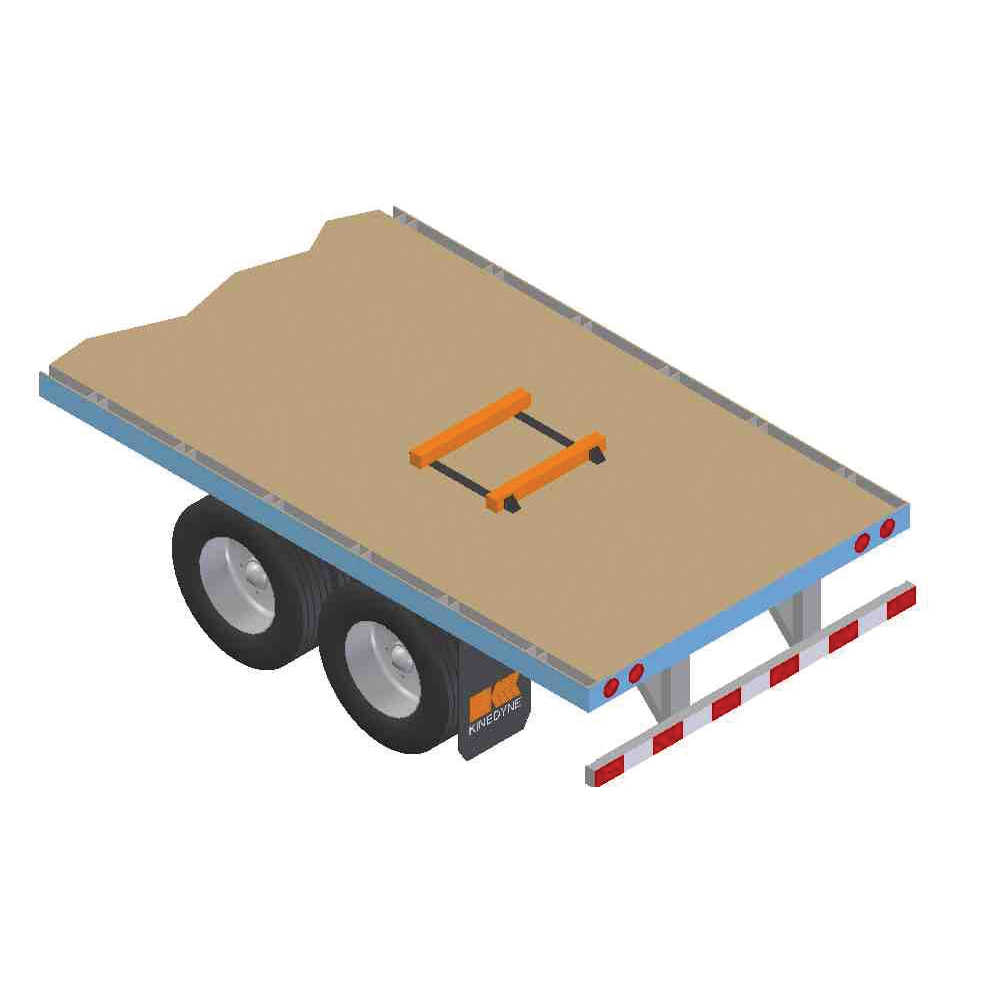

How to use coil racks
1. Place rubber friction mat on flatbed
2. Place coil chock on top of rubber friction mat
3. Place lumber on each end of coil rack to form a cradle

Q: How many coil racks per coil?
A: Three coil racks minimum are required. Four coil racks are recommended.

Specifications
- Material: 8 Gauge Hot Rolled Steel
- Finish: Powder Coated Black.
- Size: 33.25" long x 2.75" wide x 2.85" high.
- Weight : 5.4 lbs., 2.4 kgs.
- Manufacturer Item Number: Kinedyne 80044

Warnings

  • WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
  • WARNING: The Coil Chock itself is not a cargo control device and should not be accounted for in total cargo control system WLL calculations.

Features

  • Use with hardwood timbers to secure metal coils
  • 8-gauge hot rolled steel construction
  • Size (in.): 33.25 long x 2.75 wide x 2.85 high
  • Coil Racks are also known as coil chocks or coil bunks
  • Color Finish: Painted Black
Color Black
Country of Origin Imported
