Twist Lock Fasteners

Twist lock fasteners, also called turn button, turn snap or Common Sense® fasteners, hold tarps, canvas, clear vinyl curtains and boat covers to a frame with a quarter turn, and stay locked in the wind until you turn them back by hand. MyTarp carries genuine DOT® twist lock fasteners in nickel-plated brass, the matching oval eyelets and washers, and the tools to install them.

IMPORTANT: Twist lock fasteners only work with the oval 4-prong twist lock eyelet and washer. They do not work with regular round tarp grommets.

Which twist lock fastener do I need?

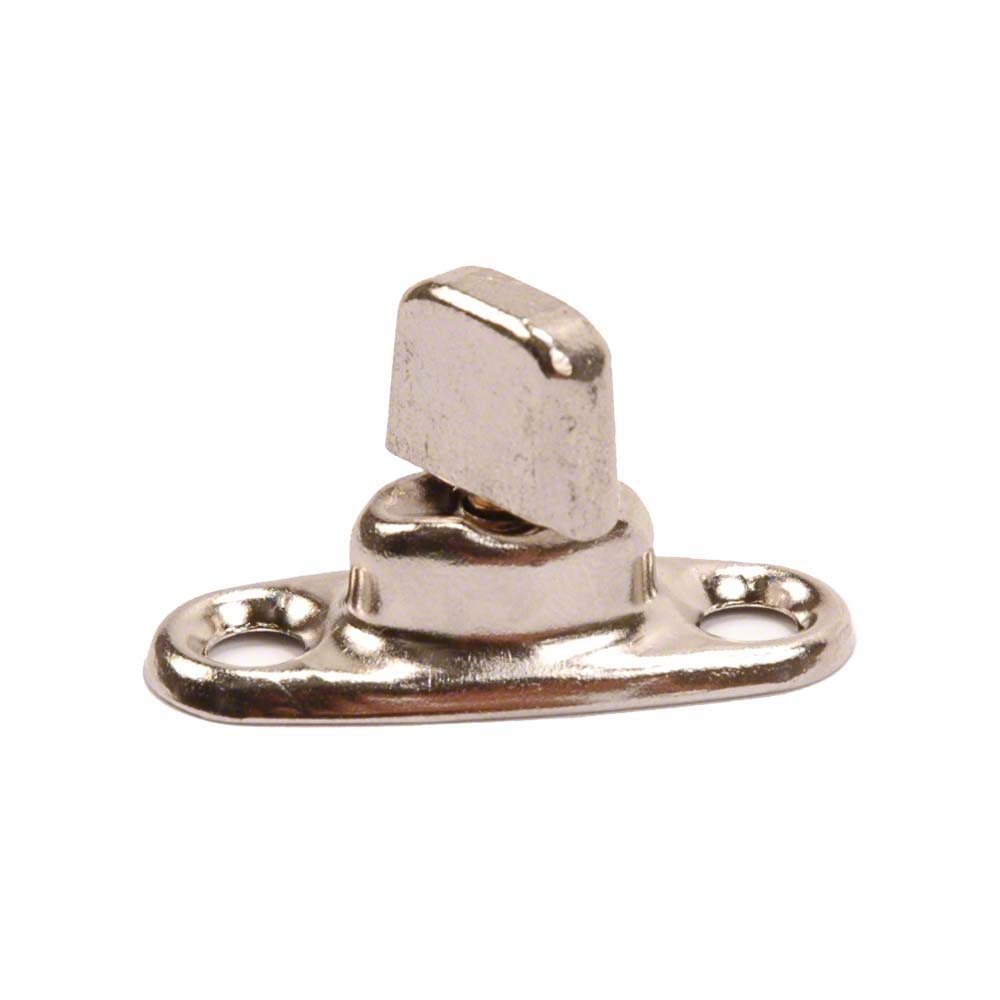

  • Two screw mount, double stud: a DOT double-height stud with 5/16" (8 mm) of clearance under the turn button. Mounts to wood or sheet metal with two #6 screws (not included). Best for thick tarp curtain material, heavy canvas, or two eyelets on one stud.

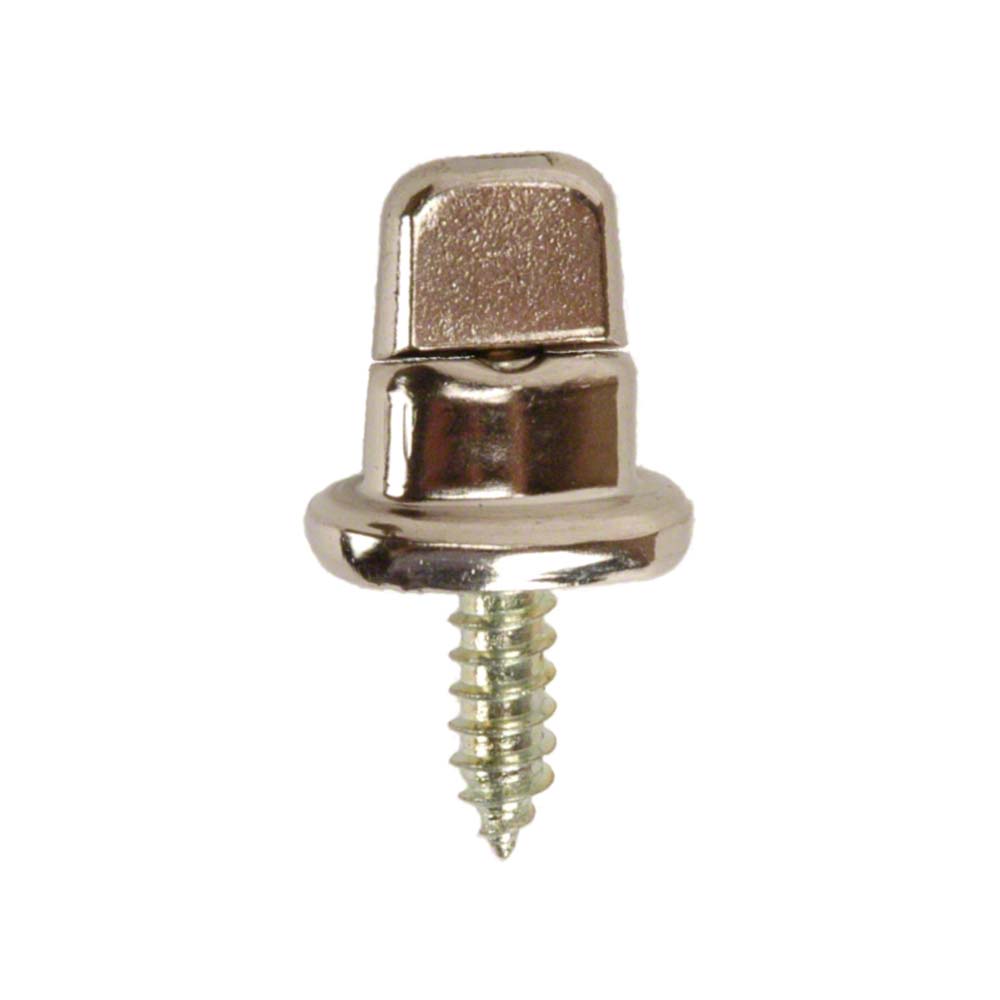

  • Single screw mount: a stud with its own #12 x 5/8" sheet metal screw that drives straight into the frame. Quick to install with the screw drill bit or screw driver below.
  • Oval eyelet and washer, 10 pairs: goes on the tarp or canvas and works with both studs.

Tools to install twist lock fasteners

  • C-4 hand hole punch: cuts the oval hole in the tarp for the twist lock eyelet. Not for round grommets.
  • Screw drill bit: installs single-screw twist lock fasteners with a standard drill or 1/4" cordless driver.
  • Screw driver: hand tool for installing single-screw twist lock fasteners.

To set the eyelet, push its four prongs through the tarp and the washer, then bend them over with a hammer on a firm surface. Two-screw fasteners need only a screwdriver or drill.

How twist lock fasteners work

  1. Install the oval twist lock eyelet and washer on the tarp or canvas.
  2. Mount the twist lock fastener on the frame or wall the tarp will fasten to.
  3. Push the turn button through the oval eyelet.
  4. Turn the button 90 degrees to lock. Turn it back to release.

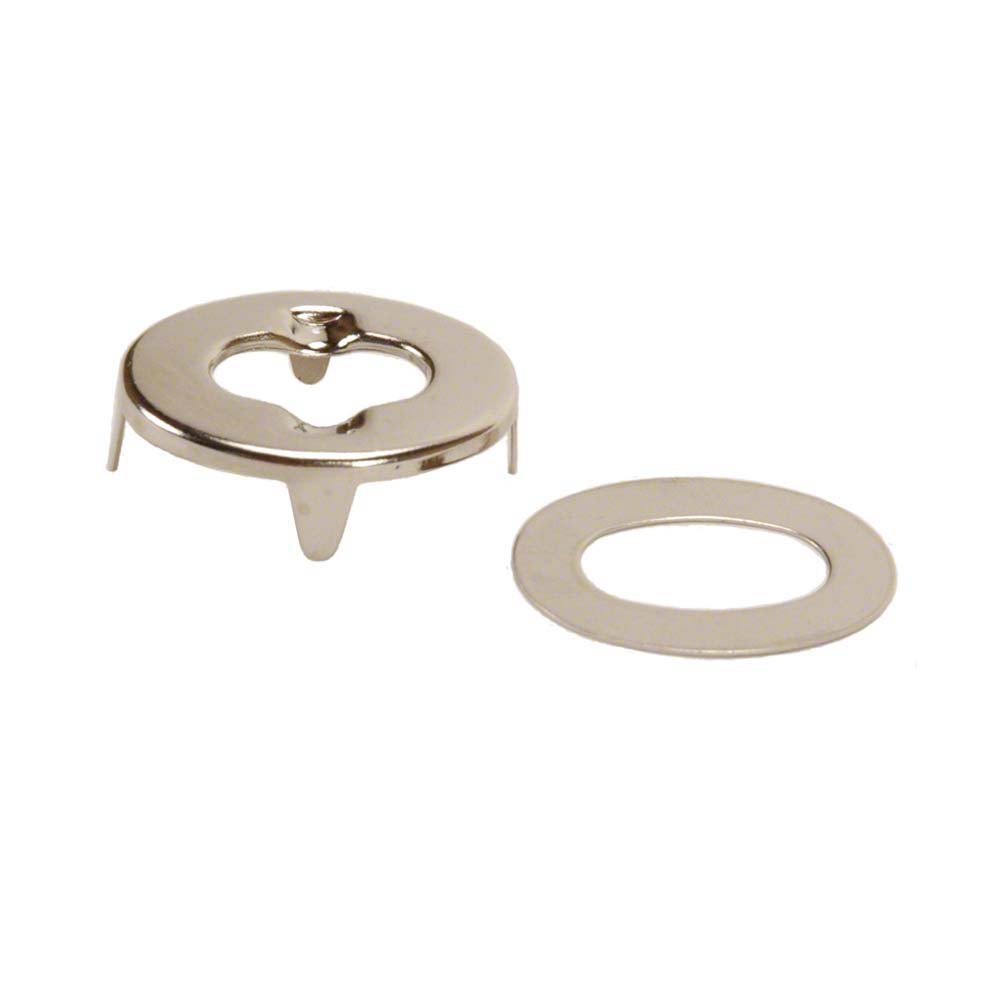

Twist Lock Fastener Oval Eyelet
Twist Lock Oval Eyelet

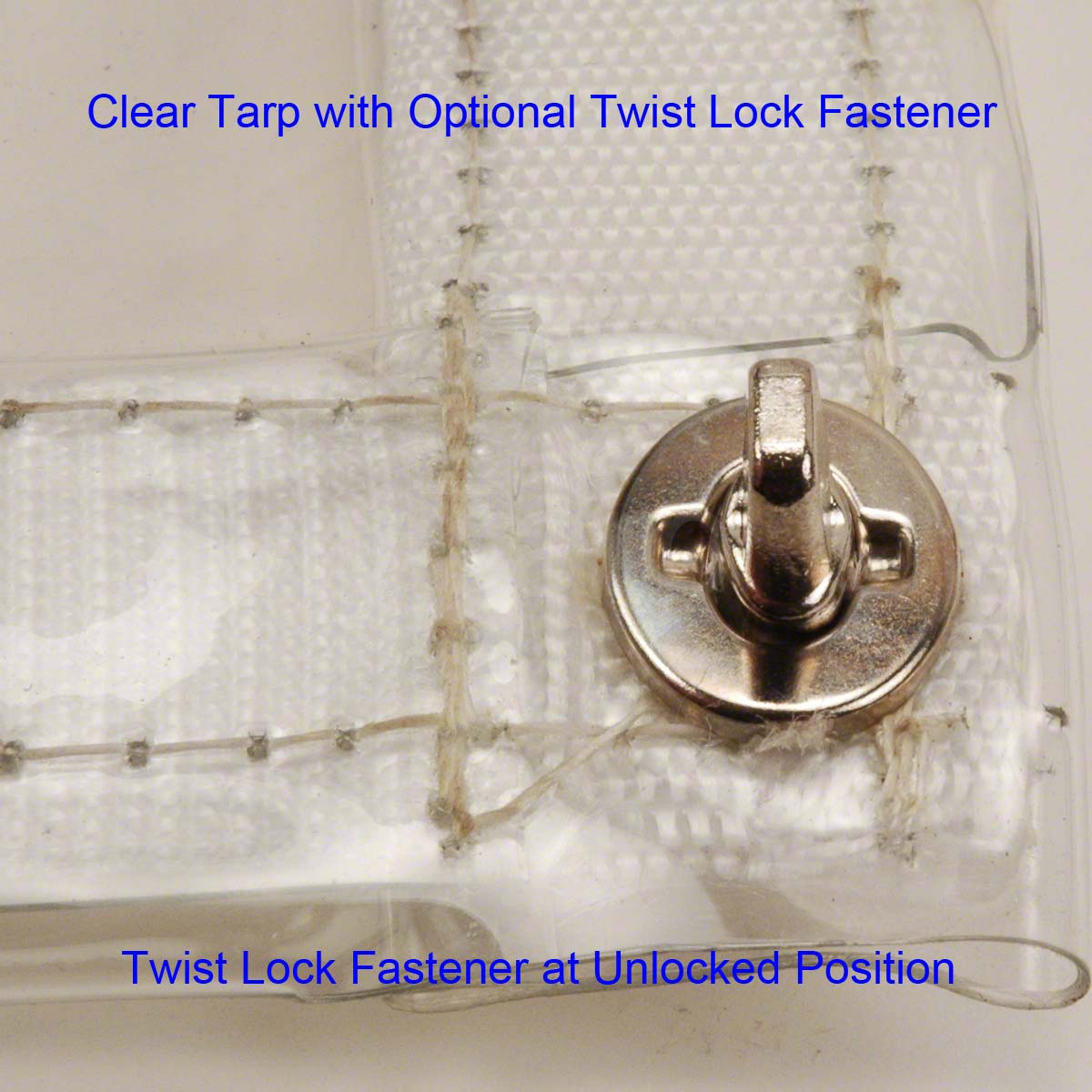

Twist Lock Fastener Unlocked
Unlocked

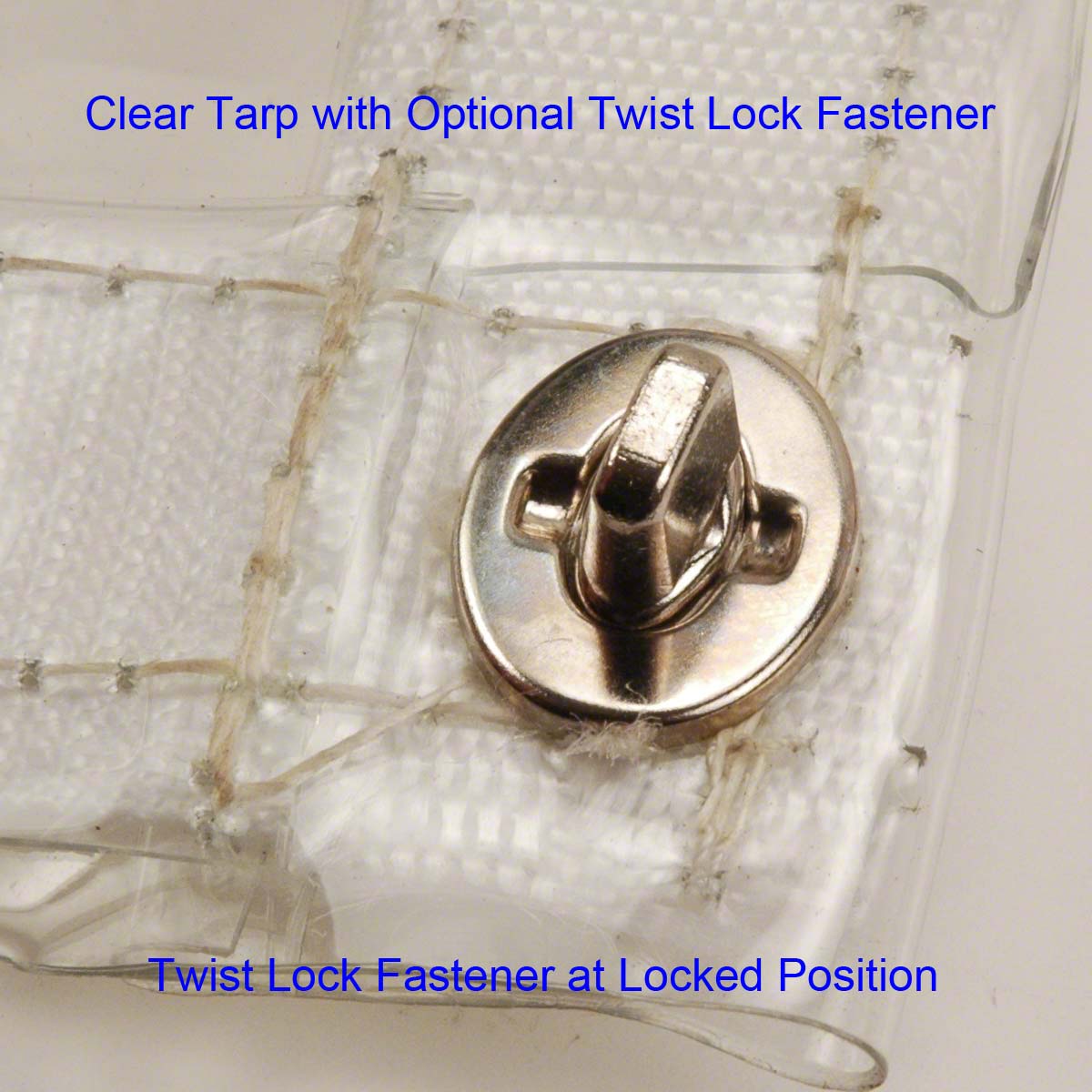

Twist Lock Fastener Locked
Turn 90 Degrees to Lock

We install twist lock fasteners for you

Need twist lock fasteners on a custom tarp? Call MyTarp at (404) 800-8888 to order custom made tarps, including clear tarps for patio and porch enclosures. We install heavy duty twist lock eyelets and washers on your tarps and ship the matching twist lock fasteners with them.

Frequently Asked Questions

What are twist lock fasteners?

Twist lock fasteners are two-part fasteners: a stud with a turn button mounts on the frame, and an oval eyelet goes on the tarp. Push the button through the eyelet and turn it 90 degrees to lock. They are also called turn button, turn snap or Common Sense® fasteners.

Do twist lock fasteners work with regular round grommets?

No. The turn button only locks through the oval 4-prong twist lock eyelet and washer, sold in packs of 10 pairs. Round tarp grommets will not hold it.

What is the difference between two-screw and single-screw twist lock fasteners?

The two-screw fastener has a flat base held by two #6 screws (not included), so it cannot rotate, and its DOT double-height stud gives 5/16" (8 mm) of clearance for thick material. The single-screw fastener has its own #12 x 5/8" sheet metal screw and installs in one step with the screw drill bit or screw driver.

What tools do I need to install twist lock fasteners?

The C-4 hand hole punch to cut the oval eyelet hole, and a hammer and firm surface to bend the eyelet prongs over the washer. Single-screw studs go in with the screw drill bit or screw driver; two-screw studs need a screwdriver or drill and #6 screws.

Are MyTarp's twist lock fasteners genuine DOT?

Yes. The studs and the oval eyelets and washers are DOT brand in nickel-plated brass; the two-screw stud is DOT part 91-XB-78323. The installation tools are made by HooVer.

What are the twist lock fasteners made of? Are they stainless steel or plastic?

Neither. The studs, eyelets and washers are nickel-plated brass, which resists corrosion in fresh and salt water. The single-screw stud's built-in screw is steel.

What are twist lock fasteners used for?

Boat covers and marine canvas, clear vinyl patio, porch and deck enclosures, tarp curtains, awnings and shade screens, and golf cart rain covers. The studs mount to wood or sheet metal frames.

Can MyTarp install twist lock fasteners on my tarp?

Yes, on custom made tarps. Call (404) 800-8888; we install the twist lock eyelets and washers on your tarp and ship the matching fasteners with it.

How many twist lock fasteners come in a pack?

The studs come in packs of 10, the oval eyelets and washers in packs of 10 pairs, and the tools are sold individually.

6 products

Twist lock fastener 2-screw mount, double stud, angled view with turn button turned
Twist Lock Fastener C-4 Hand Hole Punch
