Grommet Setting Die For Spur Grommets
Questions? Ask our experts.
- Overview
- Specs
Product Overview

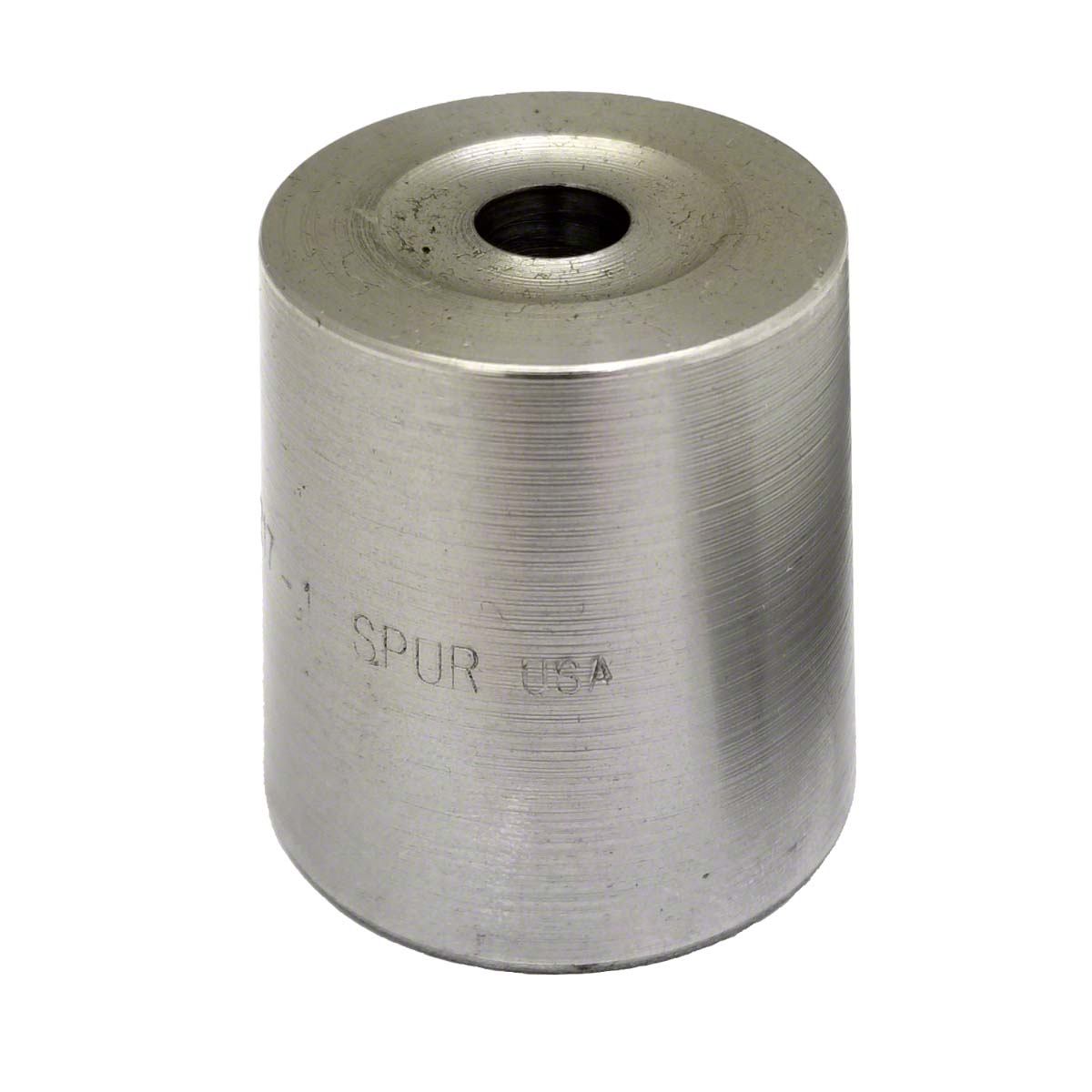

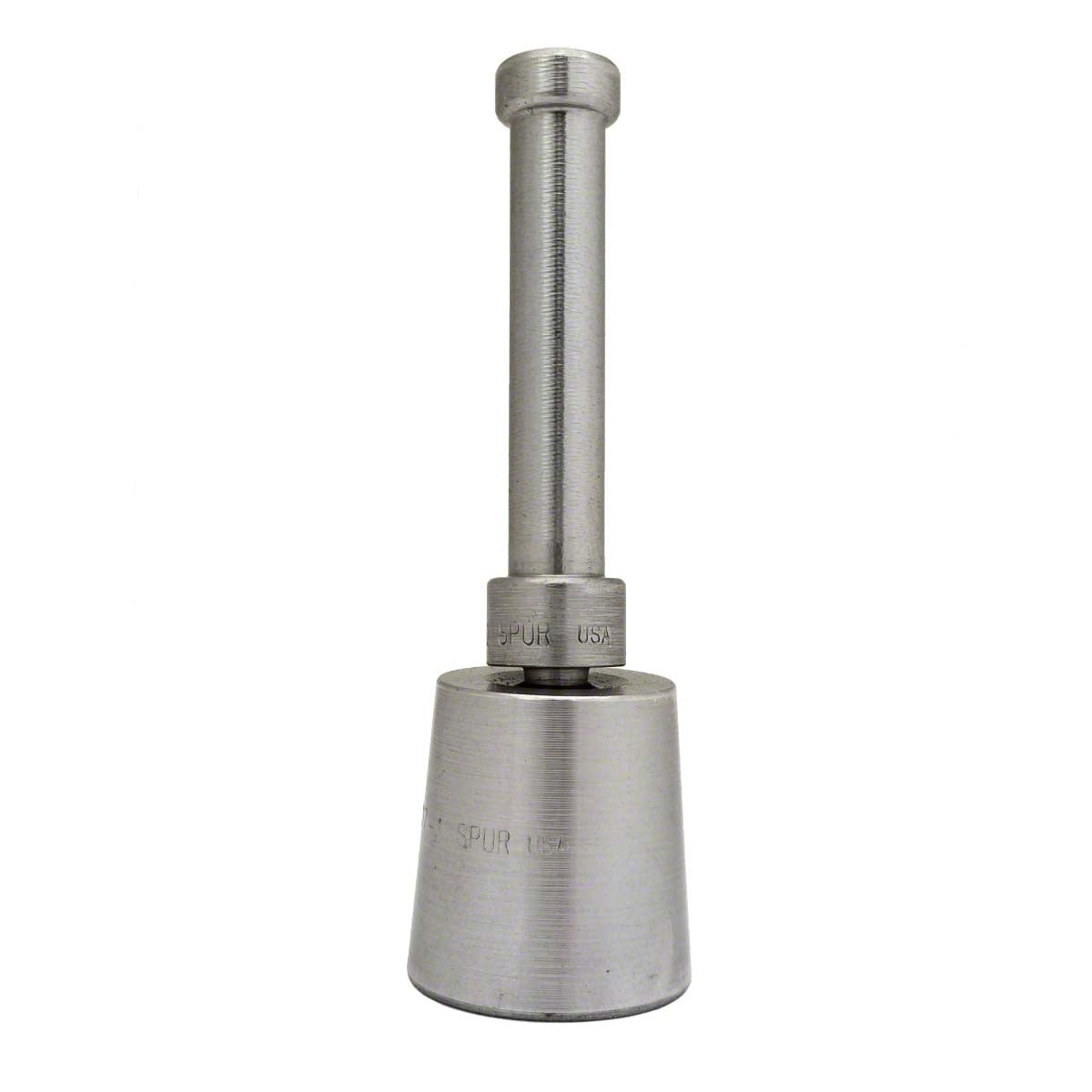

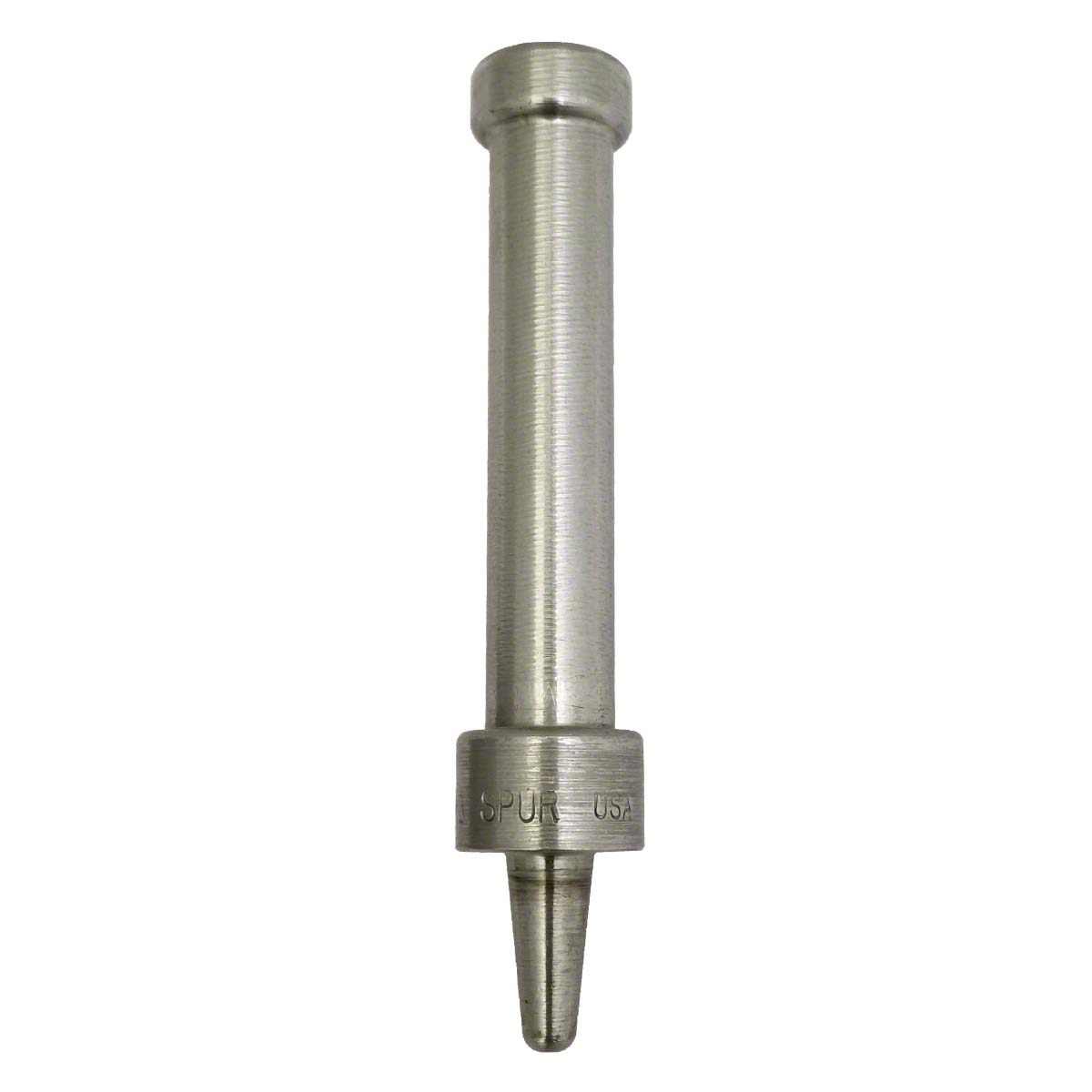

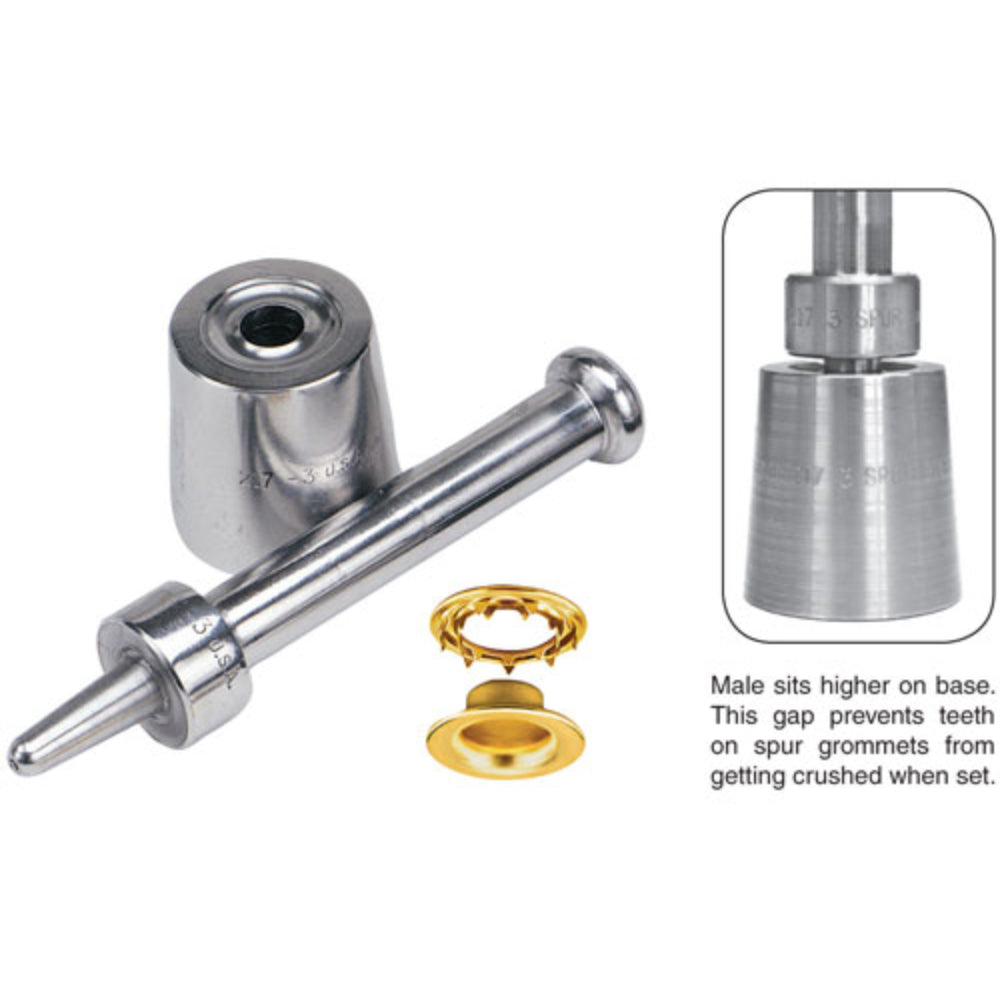

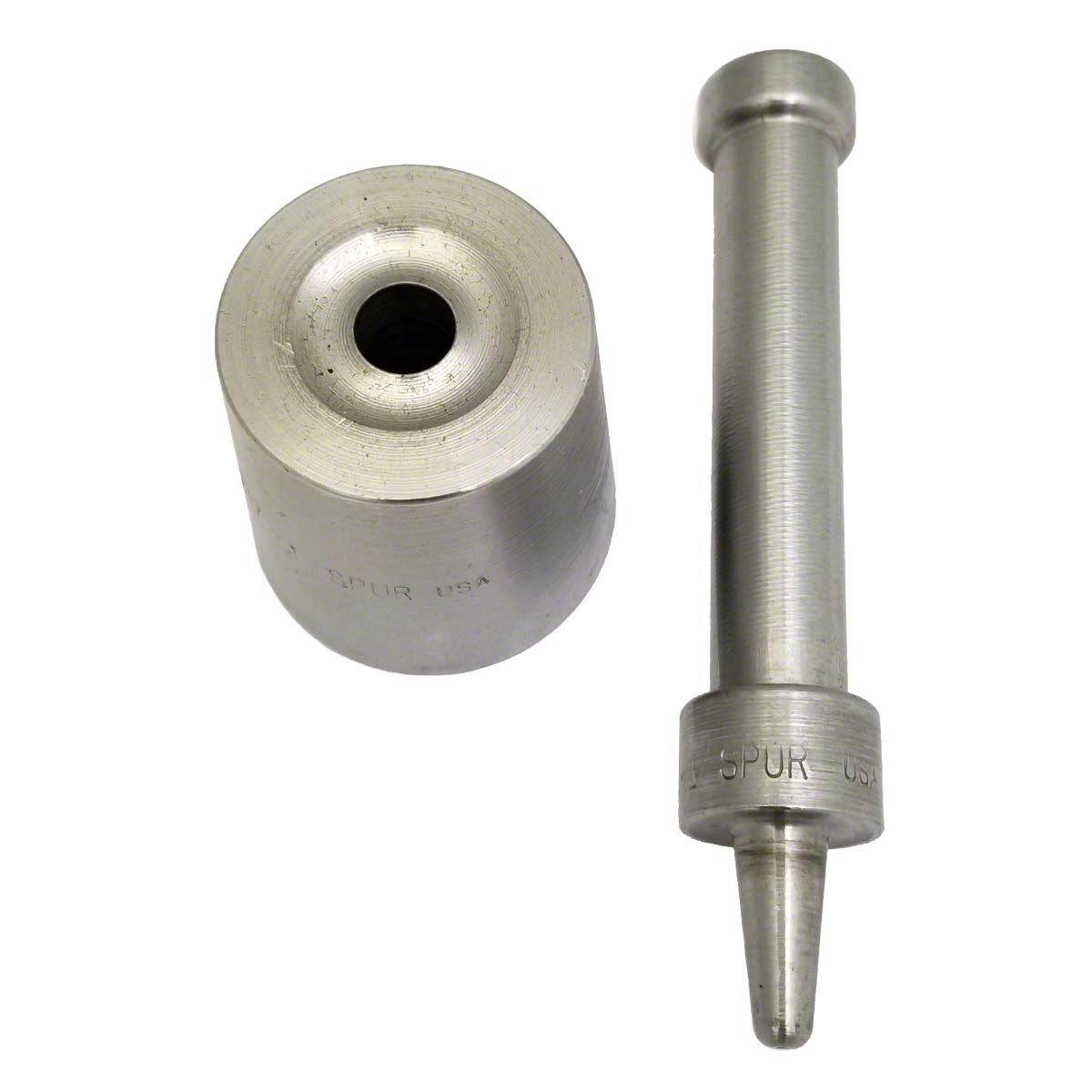

Spur grommet tool set designed for spur grommets, aka rolled rim grommets with spur washers. Sizes 0 thru 5 are CNC machined from high grade tool steel, while sizes 6 & up are a malleable iron casting. Properly machined and hardened. The finest industrial grommet dies made.
Spur grommet setting dies and grommet hole cutters should be used with an rawhide hammer or wooden mallet, or rubber mallet, not with a steel hammer.
Specifications
- Solid forged carbon steel construction
- Compatible Grommet Type: Spur grommets, a.k.a., Rolled Rim Grommets with Spur Washers, US Stimpson Style
- Grommet Sizes: 0, 1, 2, 3, 4, 5, 6, 7, 8, 10
- Made in USA

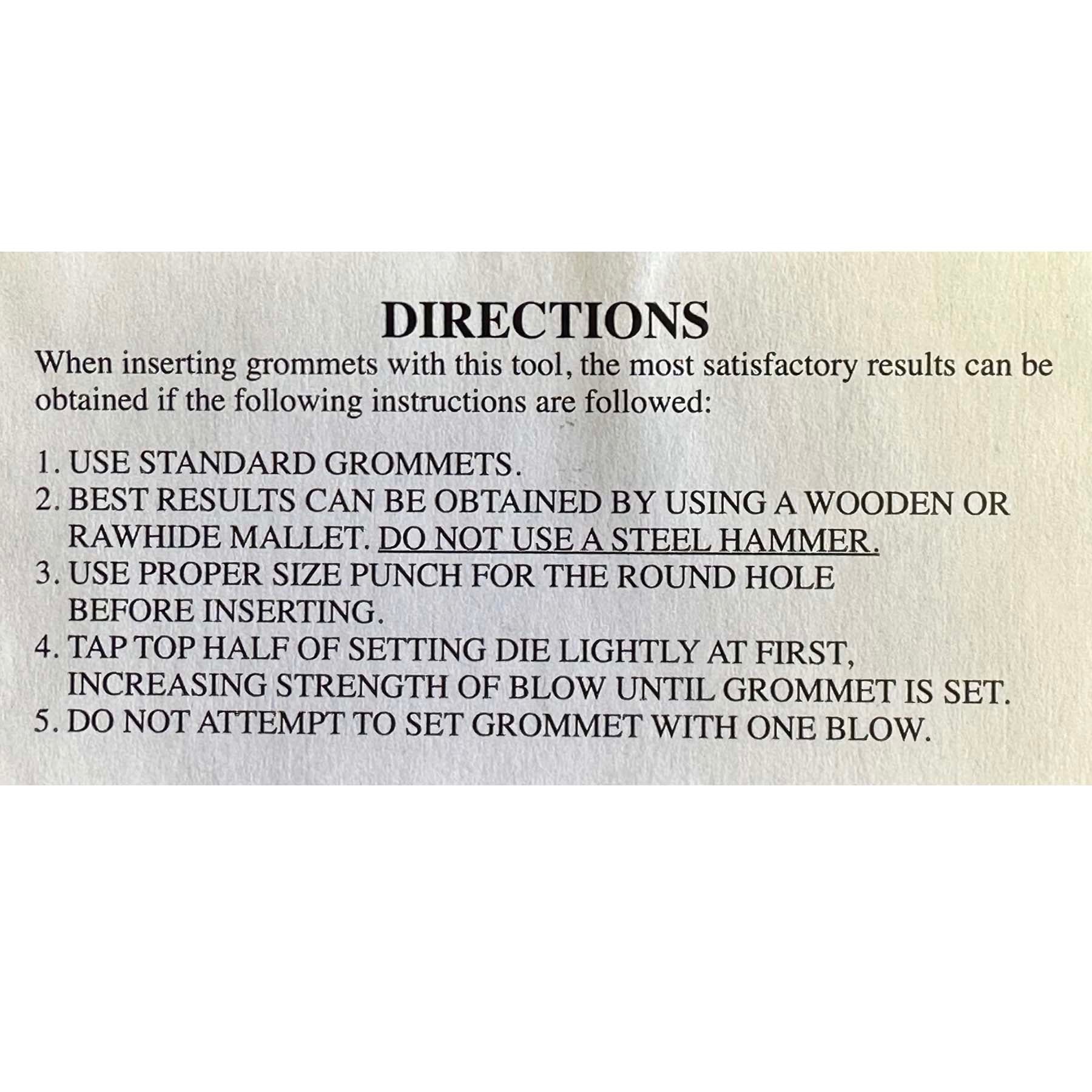

MANUFACTURER DIRECTIONS
When inserting grommets with this tool, the most satisfactory results can be obtained if the following instructions are followed:
1. USE STANDARD GROMMETS.
2. BEST RESULTS CAN BE OBTAINED BY USING A WOODEN OR RAWHIDE MALLET. DO NOT USE A STEEL HAMMER.
3. USE PROPER SIZE PUNCH FOR THE ROUND HOLE BEFORE INSERTING.
4. TAP TOP HALF OF SETTING DIE LIGHTLY AT FIRST, INCREASING STRENGTH OF BLOW UNTIL GROMMET IS SET.
5. DO NOT ATTEMPT TO SET GROMMET WITH ONE BLOW.
Warnings
- WARNING: Compatible with US Stimpson style spur grommets only. Not compatible with Plain Grommets and Plain Washers.
Features
- Spur grommet tool kit to install spur grommets, a.k.a, rolled rim grommets with spur washers
- Best to be used with rawhide hammer or wooden mallet.
- Compatible with US Stimpson style spur grommets
- Forged and hardened high grade tool steel.
- Available Grommet Sizes: 0, 1, 2, 3, 4, 5, 6, 7, 8, 10
| Color | Steel |
|---|---|
| Country of Origin | Made in USA |
