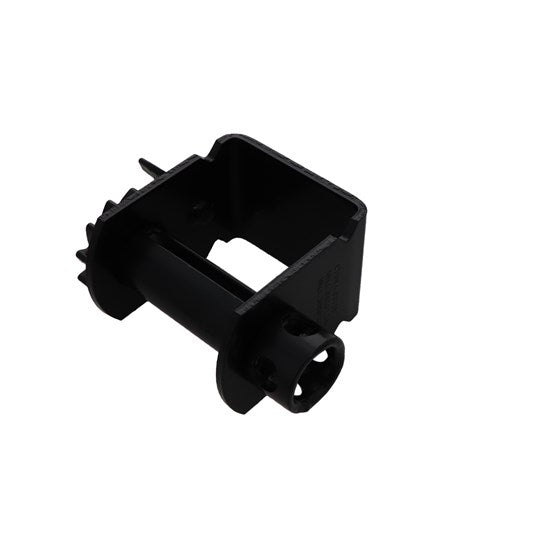

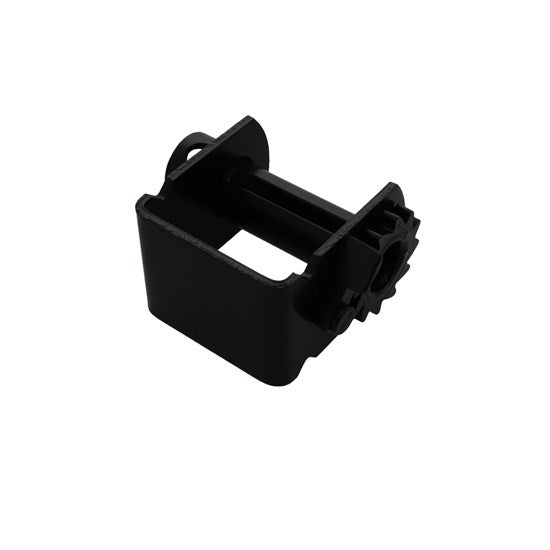

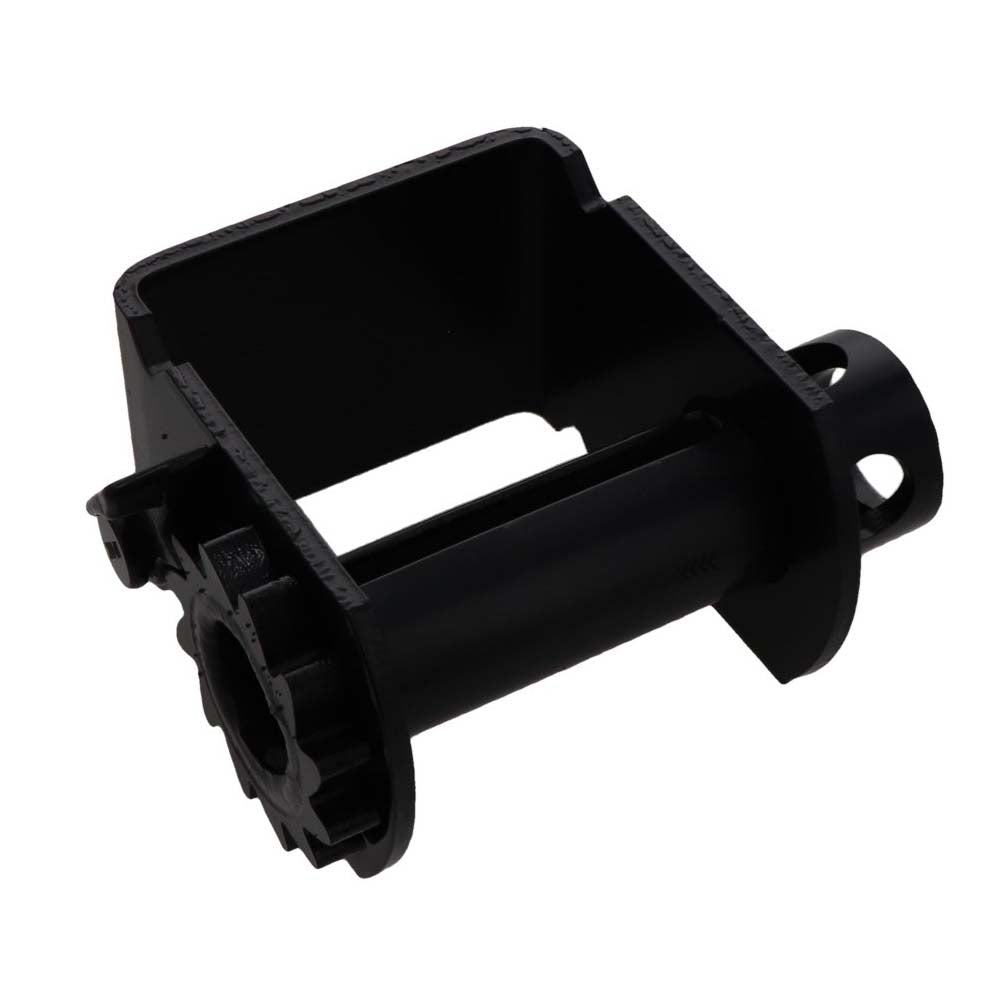

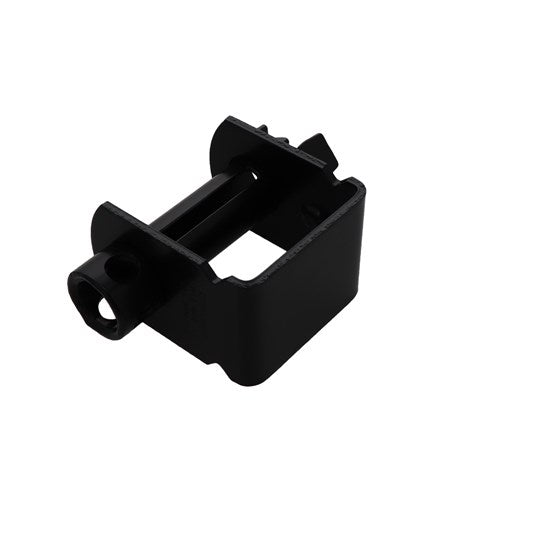

Kinedyne Sliding C Channel Winch Standard - 3820
- Kinedyne Standard C-Channel Sliding Web Winch, E-Coated
- Working Load Limit: 6,670 lbs./3025 kgs
- Lock firmly in place when tension is applied to the webbing
- Electro coat painted heat-treated carbon steel Standard Sliding C Channel Winch
- Lead Time: 1 - 2 business days + transit time
Kinedyne Standard Sliding C Channel Winch Model # 3820. Kinedyne C-Channel sliding winches keep a secure grip on your cargo even when your trailer hits an unexpected pothole or when you're forced to slam on the brakes. With a working load limit of 6670 Lbs. / 3025 Kgs., Kinedyne's Standard Sliding C Channel Winch is engineered to provide you with optimal security when you tie down your load, offering you peace of mind knowing your cargo isn't going anywhere when those potholes strike.
Kinedyne electro coat painted heat-treated carbon steel Standard Sliding C Channel Winch smoothly slides in either direction on one of Kinedyne Winch Tracks. Once tension is applied to the winch straps, this winch locks firmly into place and remains stationary even when up against the harsh demands of the road. No matter where you place this winch along its track, it will always provide you with a secure tie down point for your cargo. To make it even easier for you, this winch has Kinedyne "Thumb Pawl" thumb saver, which is an extension that allows better access to the lock that holds the sprocket in place, offering faster tightening or loosening of the winch.
Kinedyne's winches are stamped with the country of origin, working load limit, and manufacture date in accordance with North American Regulations. Kinedyne have engineered winches to comply with WSTDA, Canadian 905, North American Cargo Securement, CHP standards, and DOT regulations. Never load a winch in excess of its working load limit.
Specifications:
- Working Load Limit: 6670 Lbs. / 3025 Kgs.
- Height: 5.98 Inches
- Width: 3.94 Inches
- Length: 7.66 Inches
- Weight: 9.2 Lbs. / 4.2 Kgs. - Storage Capacity (Webbing Length): 27 Feet Approximately
- Kinedyne Standard C-Channel Sliding Web Winch, E-Coated
- Working Load Limit: 6,670 lbs./3025 kgs
- C-Channel sliding winches move easily in both directions for positioning in the track
- Lock firmly in place when tension is applied to the webbing
- Must be used with Kinedyne winch track (part numbers 3606, 3606-12 and 3607)
Applications
Applications
Warnings
Warnings
- WARNING: When tightening or loosening winches, always maintain a firm grip on the winch bar. Never release a winch bar without checking the pawl to ensure that it is fully engaged between ratchet teeth. Releasing a winch bar without the pawl being properly engaged can cause serious injury to the user or bystanders. The use of a slip resistant handle winch bar, specifically designed to tighten or loosen winches, is recommended. Kinedyne winch bars shall be used to tension and release tie-down assemblies. Cheater Bars or extenders shall not be used with the winch bars. User shall stand clear of the winch bar handle during operation of the winch bar in case the winch bar slips. The tip of the winch bar shall be inserted through both holes in the end cap to prevent the winch bar from slipping out and overloading the tip and/or end cap. Winches shall not be loaded in excess of their working load limit. Winches shall not be used as pulling or lifting devices. A minimum of 12" of webbing shall be inserted through the slot, and a minimum of two (2) wraps shall be on the winch mandrel.
- CAUTION: Excessive wraps of webbing on the mandrel will reduce the working load limit of the winch.
- PORTABLE WINCH WARNING: Set screws on portable winches are designed to position the winch while the tie-down assembly is being tightened. They shall only be snug tight. Overtightening of screws may cause the bracket to bend, weakening the winch and causing it to fail. Portable winches shall be removed and stored when not in use.
