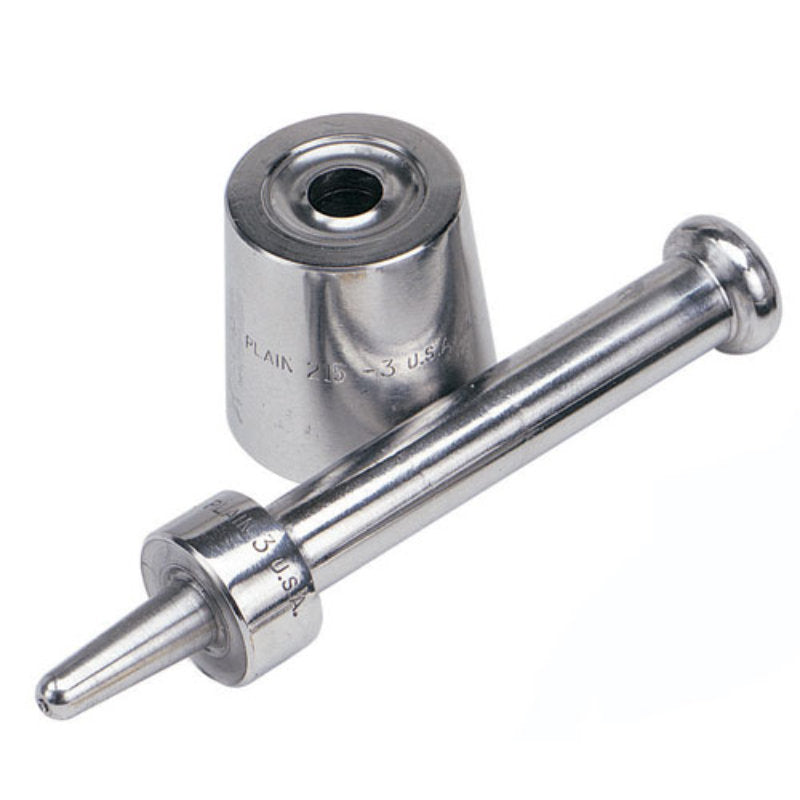

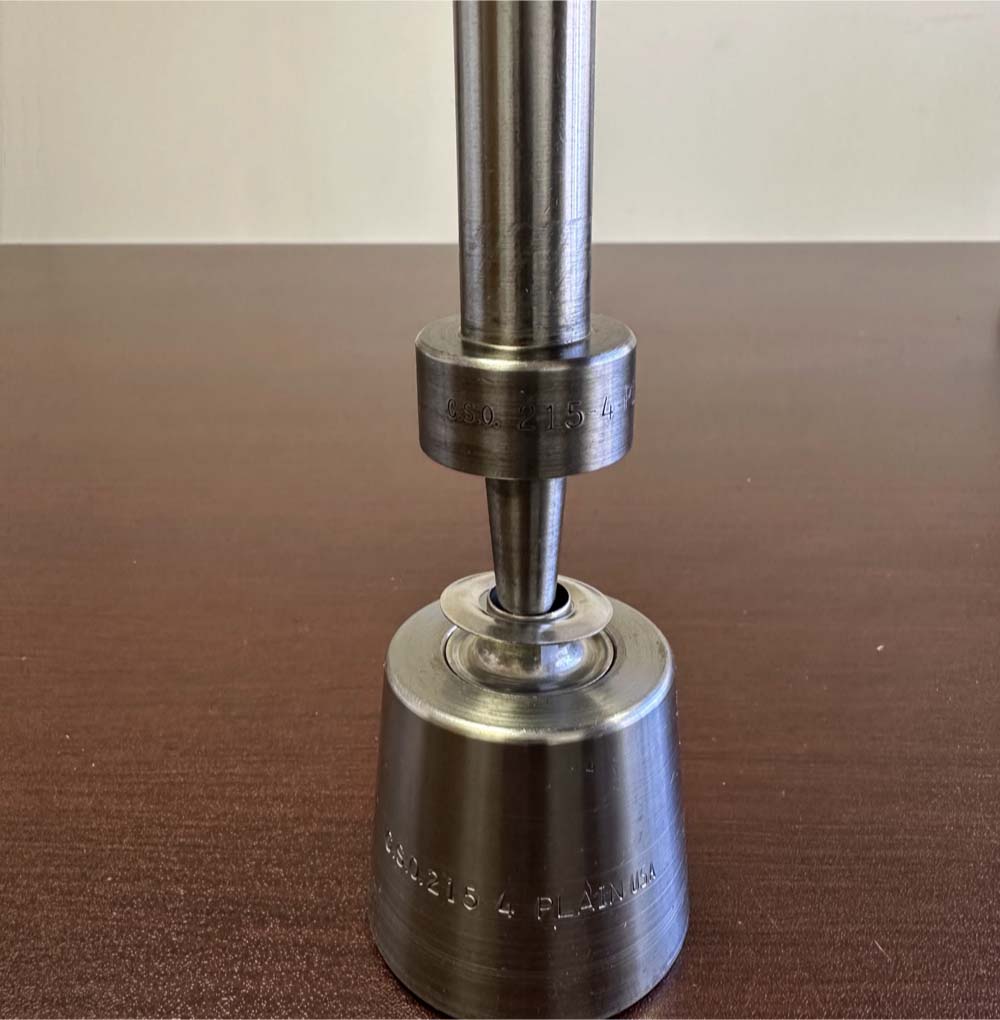

Grommet Setting Die for Stainless Steel Grommets - Plain
Questions? Ask our experts.
- Overview
- Specs
Product Overview
Manufactured on sophisticated CNC machines that produce high precision parts that properly mate the grommet & washer every time. Most importantly, the Stainless Grommet Setting Dies are engineered from a high carbon steel tough enough to set stainless steel grommets. Available in 6 sizes. Plain grommet setting dies and grommet hole cutters should be used with an rawhide hammer or wooden mallet, or rubber mallet, not with a steel hammer. Designed for plain grommets and washers.
Specifications
- Solid forged high carbon steel construction
- Compatible Grommet Type: Plain Sheet Metal Grommets with Plain Washers, US Stimpson Style
- Grommet Sizes: 00, 0, 1, 2, 3, 4

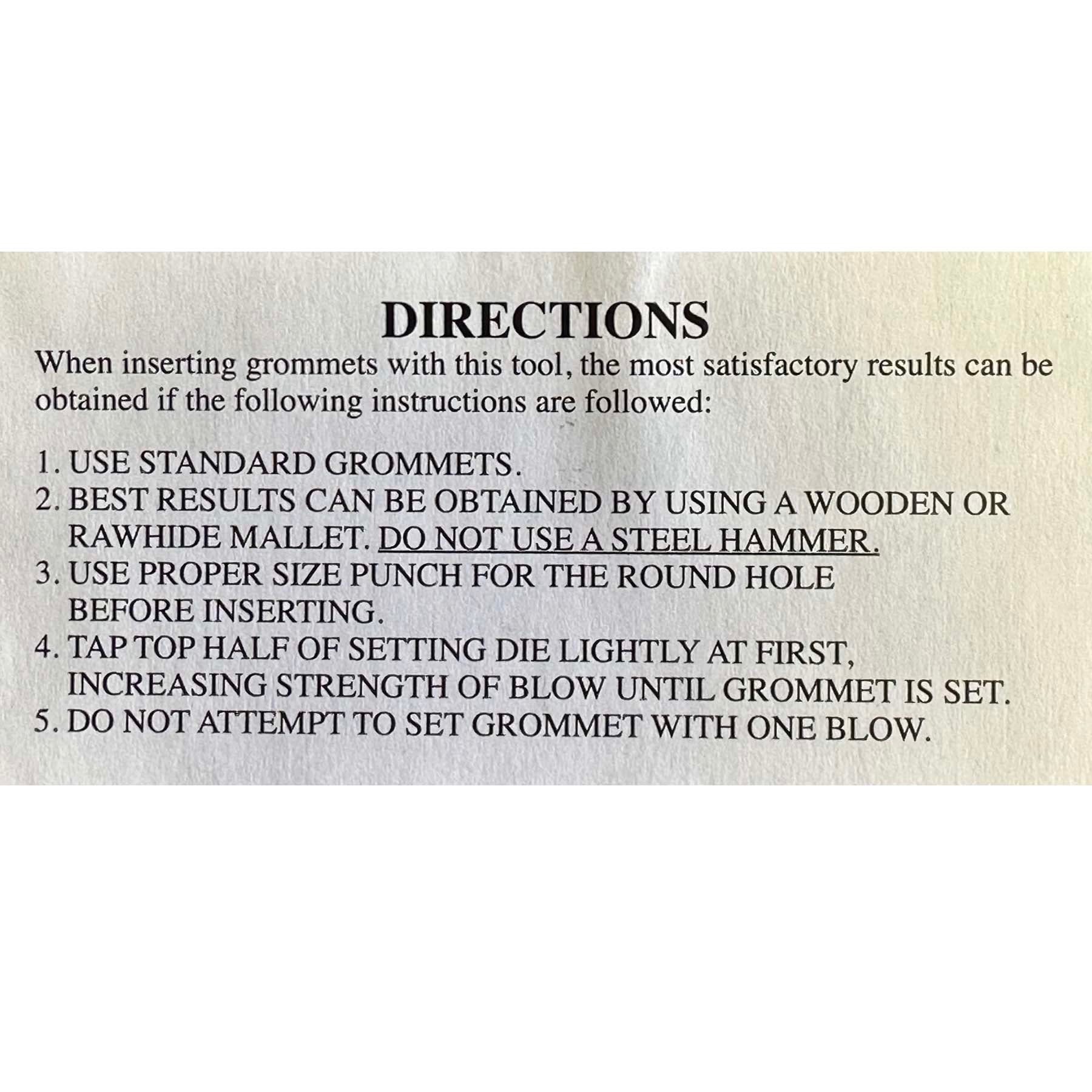

MANUFACTURER DIRECTIONS
When inserting grommets with this tool, the most satisfactory results can be obtained if the following instructions are followed:
1. USE STANDARD GROMMETS.
2. BEST RESULTS CAN BE OBTAINED BY USING A WOODEN OR RAWHIDE MALLET. DO NOT USE A STEEL HAMMER.
3. USE PROPER SIZE PUNCH FOR THE ROUND HOLE BEFORE INSERTING.
4. TAP TOP HALF OF SETTING DIE LIGHTLY AT FIRST, INCREASING STRENGTH OF BLOW UNTIL GROMMET IS SET.
5. DO NOT ATTEMPT TO SET GROMMET WITH ONE BLOW.
Warnings
- WARNING: Compatible with US Stimpson style plain grommets with plain washers only. Not compatible with Spur Grommets or Rolled Rim Grommets with Spur Washers.
Features
- Easily set plain grommets and washers with setting die.
- High carbon steel tough enough to set stainless steel grommets.
- CNC machine high precision manufactured.
- Forged and hardened high grade tool steel.
- Available Grommet Sizes: 00, 0, 1, 2, 3, 4
| Color | Steel |
|---|---|
| Country of Origin | Made in USA |
Questions? Ask our experts.
Customer Reviews
All items are as advertised and service was exceptional. They called updated order as I had ordered wrong part

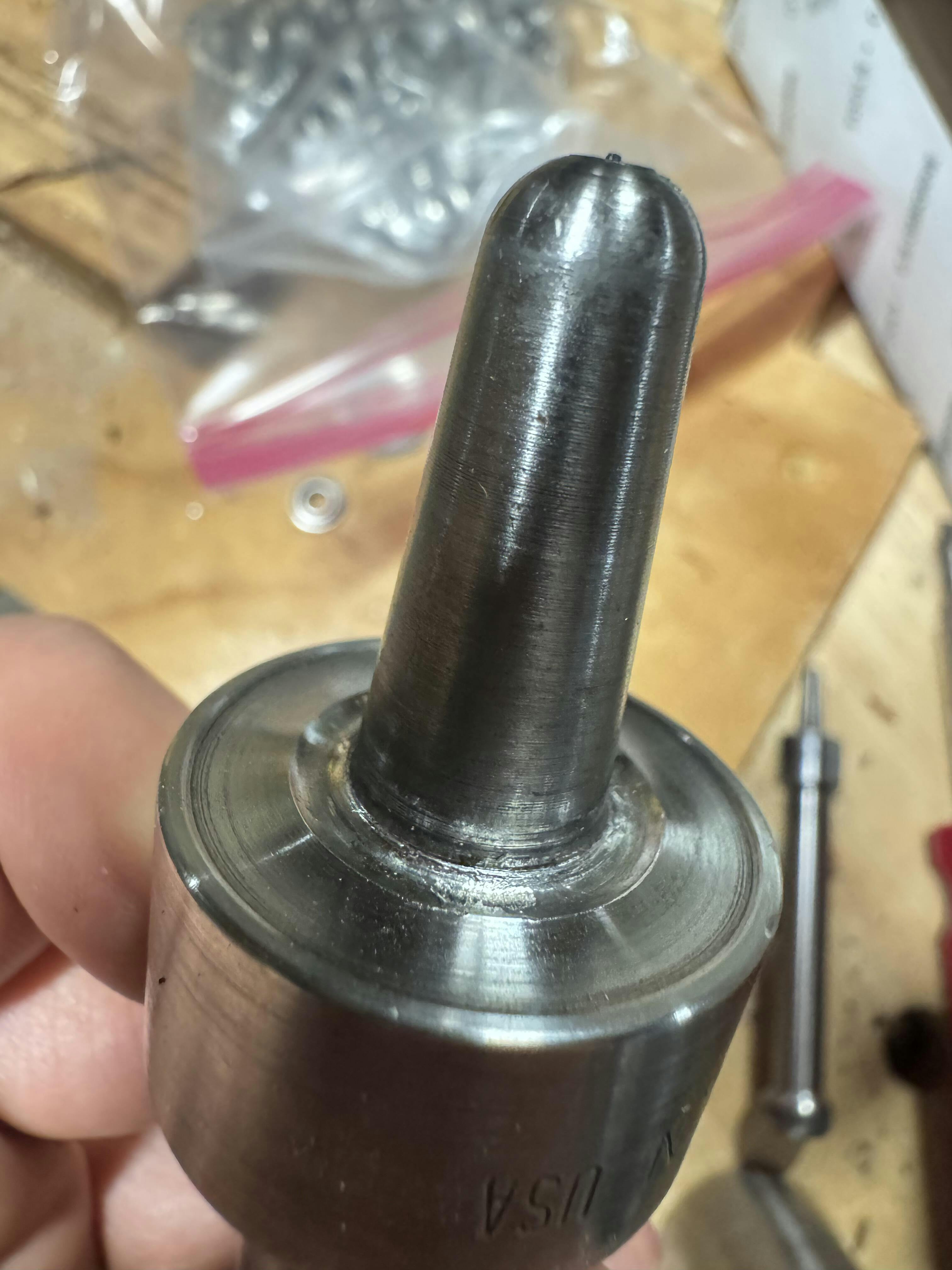

These dies do not work with the stainless grommets that were purchased together. The stainless grommets will not roll over and simply cut into the die. It appears as if the dies aren't hard enough and are now not usable for brass grommets since they have been cut into. I was only able to use for the first couple of grommets with more force than should be required.
