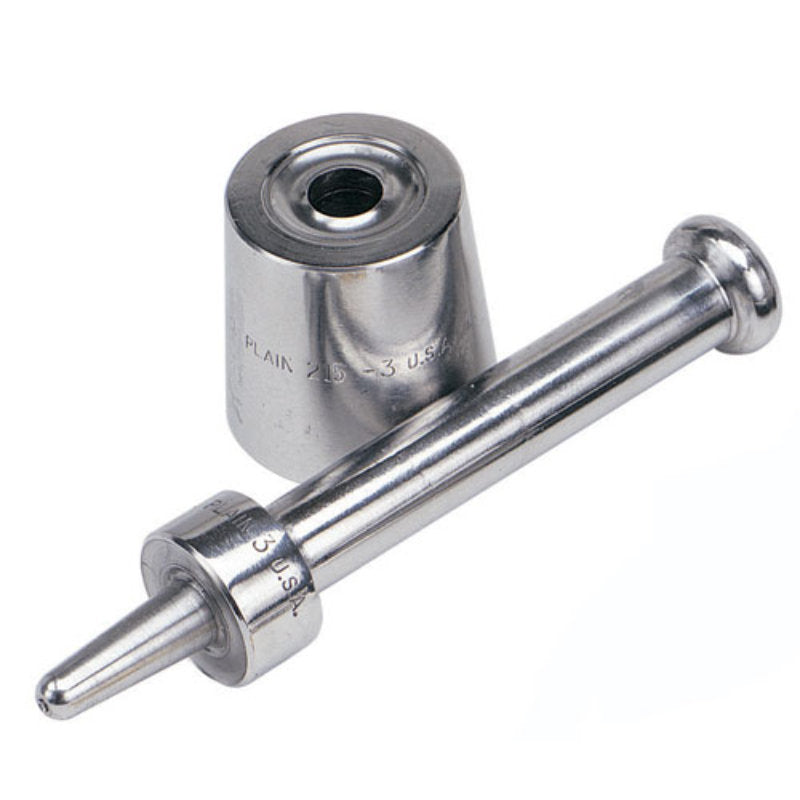

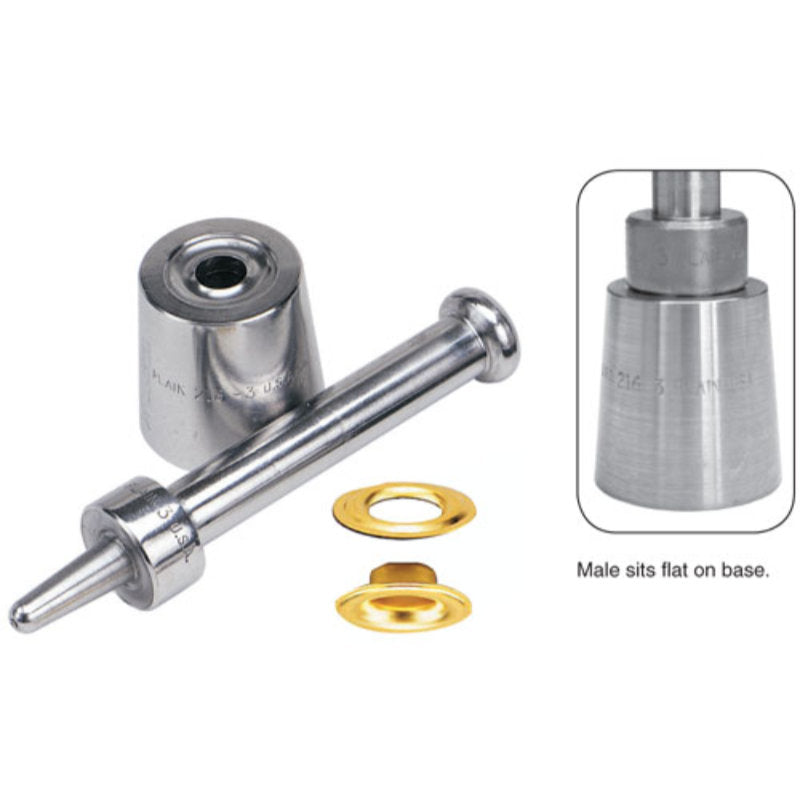

Grommet Setting Die For Plain Grommets

Plain grommet setting dies and grommet hole cutters should be used with an rawhide hammer or wooden mallet, or rubber mallet, not with a steel hammer. Designed for plain grommets and washers. Sizes 00 thru 5 are CNC machined from high grade tool steel, while sizes 6 & up are a malleable iron casting. Properly machined and hardened. The finest industrial grommet dies made.

Specifications

- Solid forged carbon steel construction
- Compatible Grommet Type: Plain Sheet Metal Grommets with Plain Washers, US Stimpson Style

Plain Grommet Size Chart

Size 00 - Hole Size 3/16"
Size 0 - Hole Size 1/4"
Size 1 - Hole Size 9/32"
Size 2 - Hole Size 3/8"
Size 3 - Hole Size 7/16"
Size 4 - Hole Size 1/2"
Size 5 - Hole Size 5/8"
Size 6 - Hole Size 13/16
Size 10 - Hole Size 1-1/2"
Size 12 - Hole Size 1-9/16
Size 15 - Hole Size 2"

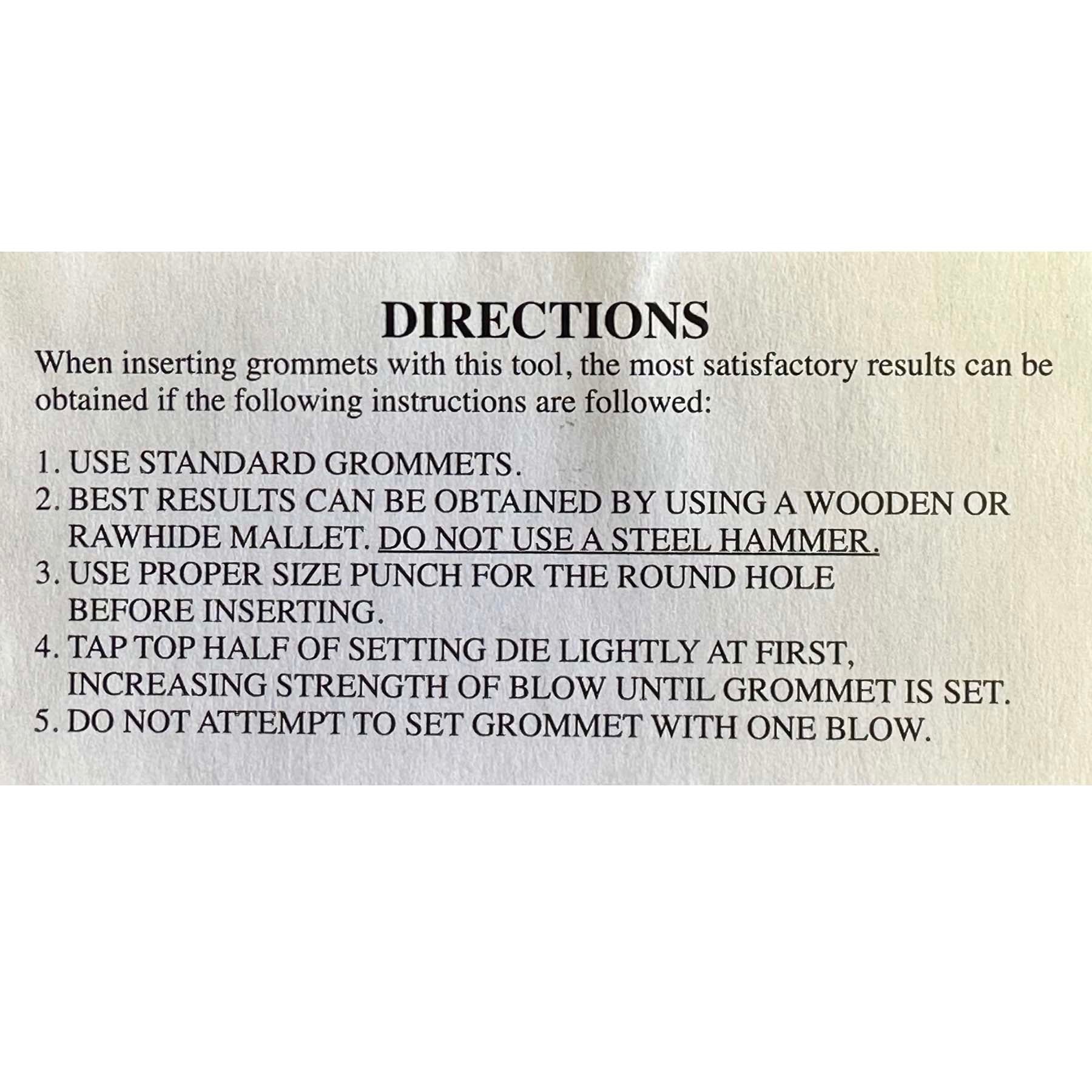

MANUFACTURER DIRECTIONS

When inserting grommets with this tool, the most satisfactory results can be obtained if the following instructions are followed:

1. USE STANDARD GROMMETS.
2. BEST RESULTS CAN BE OBTAINED BY USING A WOODEN OR RAWHIDE MALLET. DO NOT USE A STEEL HAMMER.
3. USE PROPER SIZE PUNCH FOR THE ROUND HOLE BEFORE INSERTING.
4. TAP TOP HALF OF SETTING DIE LIGHTLY AT FIRST, INCREASING STRENGTH OF BLOW UNTIL GROMMET IS SET.
5. DO NOT ATTEMPT TO SET GROMMET WITH ONE BLOW.
