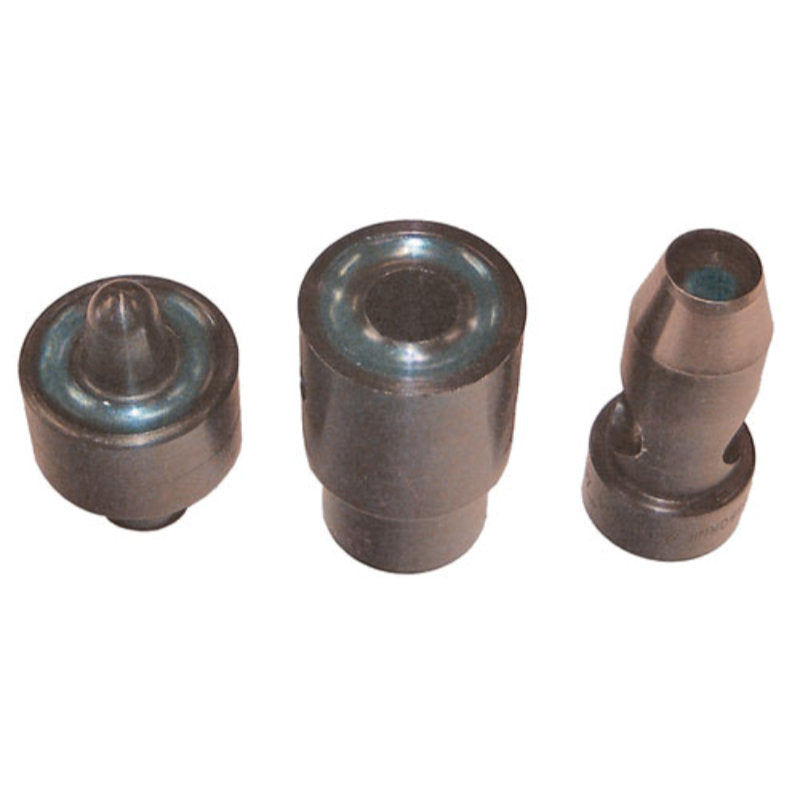

Grommet Die and Hole Cutter 3-Piece Set - For Plain Grommets - For W-1 Grommet Press Machine
Questions? Ask our experts.
- Overview
- Specs
- Reviews
Product Overview
Grommet Die and Hole Cutter Plain 3-Piece Set (Plain Grommets and Plain Washers) - For OS Osborne W-1 Hand Grommet Press Machines or W-3 Pneumatic Grommet Press Machines. The grommet die set is designed for W-1 Hand Press or W-3 Pneumatic machines, not as a hand tool. Instruction enclosed. Grommet sizes available: #00 to #15.
SPECIFICATIONS
- For OS Osborne W-1 Hand Grommet Press Machine and W-3 Pneumatic Grommet Press Machine
- Compatible Grommet Style: Plain Grommets with Plain Washers, US Stimpson Style
- Use with brass grommets or aluminum grommets only. Not for stainless steel grommets.
- Grommet Sizes Available: #00, #0, #1, #2, #3, #4, #5, #6, #10, #12, #15
GROMMET SIZE CHART (Plain Grommets)
- #00 - Hole Diameter 3/16"
- #0 - Hole Diameter 1/4"
- #1 - Hole Diameter 9/32"
- #2 - Hole Diameter 3/8"
- #3 - Hole Diameter 7/16"
- #4 - Hole Diameter 1/2"
- #5 - Hole Diameter 5/8"
- #6 - Hole Diameter 13/16"
- #10 - Hole Diameter 1-1/2"
- #12 - Hole Diameter 1-9/16"
- #15 - Hole Diameter 2"
Warnings
- WARNING: This is grommet die set only. Grommet machine or grommets are not included.
- WARNING: For brass or aluminum grommets only. Not recommended for stainless steel grommets. Please use high carbon steel Grommet Setting Die for Stainless Steel Grommets.
- WARNING: For plain grommets with plain washers only. Not compatible with spur grommets or rolled rim grommets with spur washers.
Features
- 3-pc set for W-1 hand grommet snap press machine or W-3 pneumatic grommet press machines.
- Compatible with plain grommets and plain washers.
- 3-Piece Set includes: Grommet Dies and Hole Cutter
- Made from high strength carbon tool steel
- Available Grommet Sizes: 00, 0, 1, 2, 3, 4, 5, 6, 10, 12, 15
| Color | Steel |
|---|---|
| Country of Origin | Imported |
